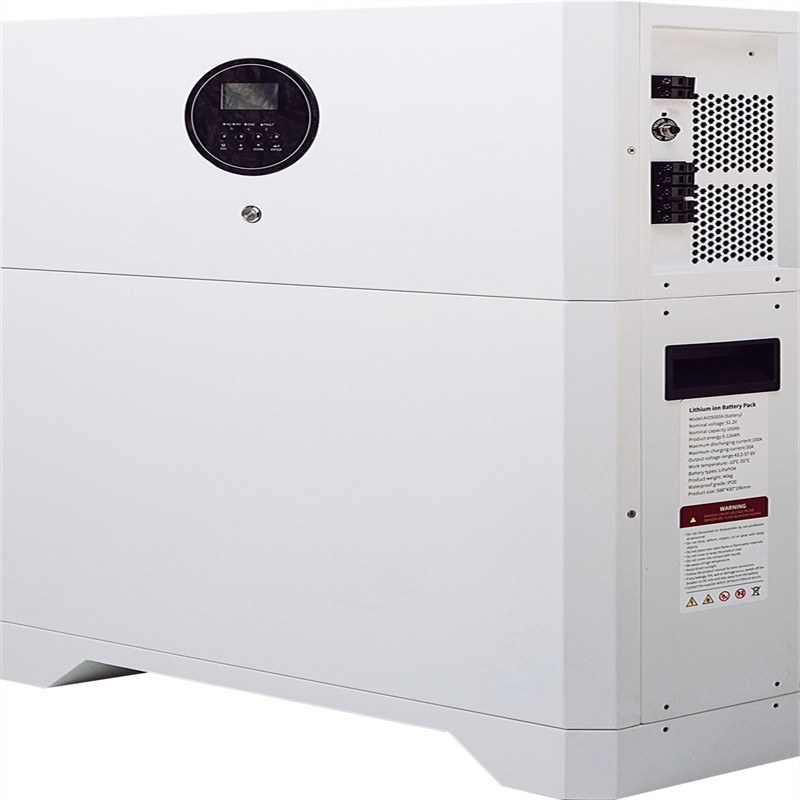

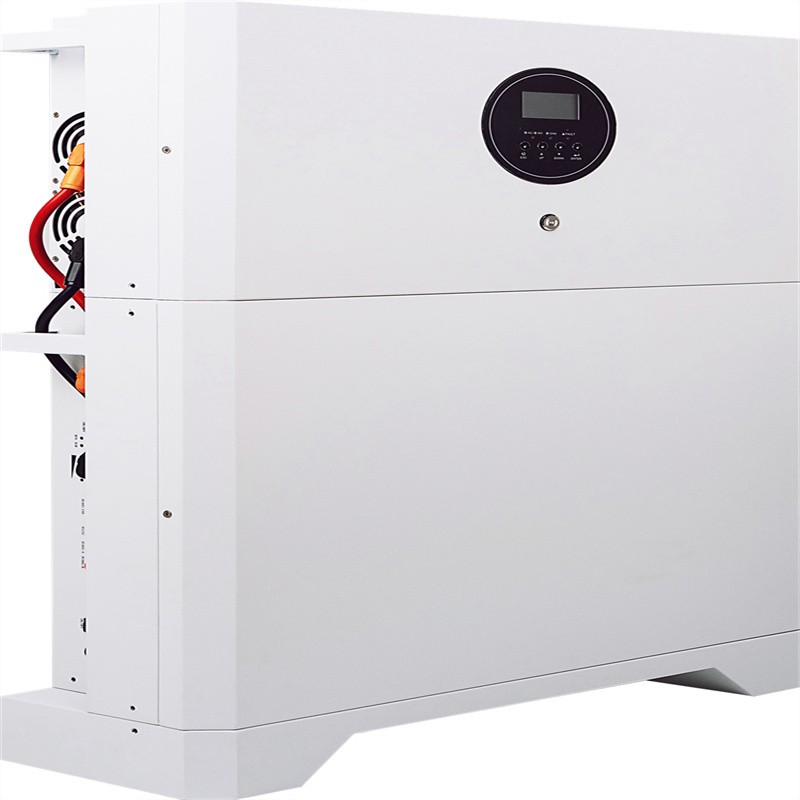

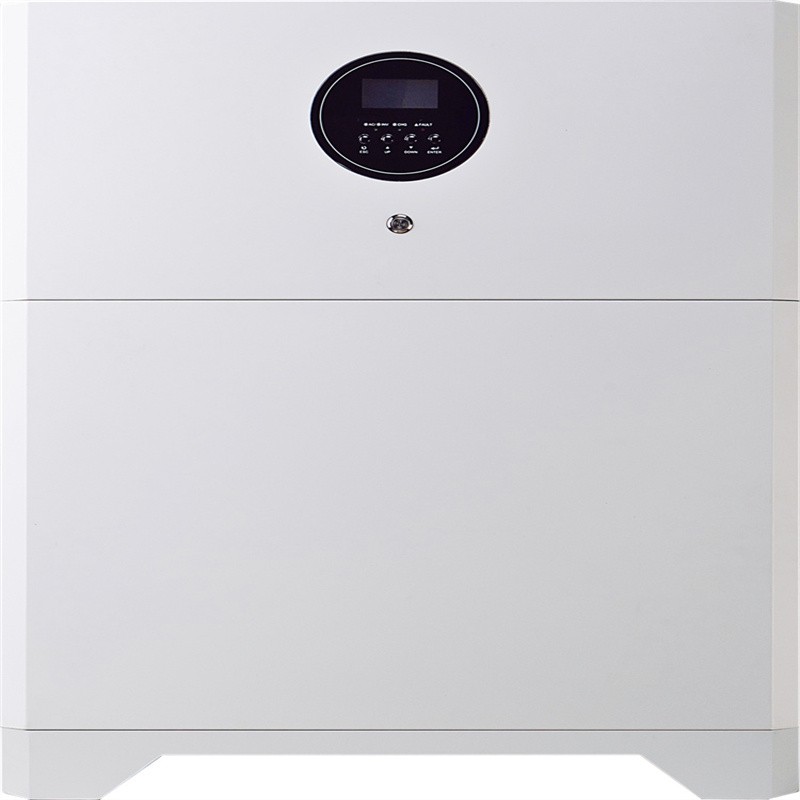

L5 all in one solar energy lithium battery system

Product Item：5

Rated Power : 5000W
Rated Voltage : 230VAC
Frequency : 50Hz-60Hz
Length*Width*Height (mm) : 588*196*808mm
Weight (kg) : 58kg

Battery parameters	L5regular version	L5enhanced version
Rated power (kWh)	5.12	5.12
Rated voltage (V)	51.2	51.2
Discharge voltage range (V)	44.8-57.6	44.8-57.6
Rated charging current (A)	50A @25°C	50A @25°C
Maximum charging current (A)	100A @25°C	100A @25°C
Discharge depth	DOD 90%	DOD 90%
Communication mode	RS485/RS232/CAN	RS485/RS232/CAN
Lifespan	5000times 0.5C @25°C	5000times 0.5C @25°C
Operating Temperature	Charge 0°C-50°C / Discharge -10°C-+55°C	Charge 0°C-50°C / Discharge -10°C-+55°C
Storage Temperature	Temperature -15°C ~ +60°C	Temperature -15°C ~ +60°C
Cell Material	LiFePO4	LiFePO4
Battery Warranty	3years	5years

Inverter Parameters
Rated Power	5000W	5000W
Rated Voltage	230VAC	230VAC
Maximum charging current (A)	100A	100A
Frequency	50Hz-60Hz	50Hz-60Hz
Switching time	≤20ms	≤20ms
Waveform	simple harmonic vibration	simple harmonic vibration
Battery access voltage	40-60V	40-60V
Basic parameters
LengthWidthHeight (mm)	588196808mm	588196808mm
Weight (kg)	58kg	58kg
WIFI Module	not have	have
Aerosol Fire Module	not have	have

Q1: Can I have a sample for testing?
A: Yes, we can support sample . The sample will be charged reasonably according to the negotiation between us.

Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.

Q3: What are the benefits of being a distributor?
A: Special discount Marketing protection.

Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting
or installation process, as well as aftermarket support.

Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.

...
