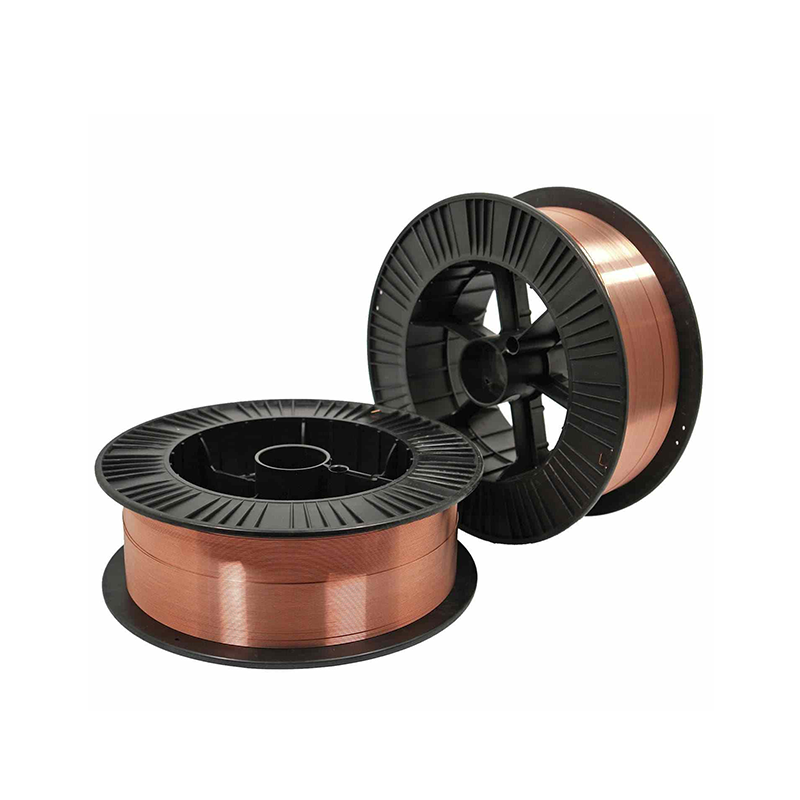

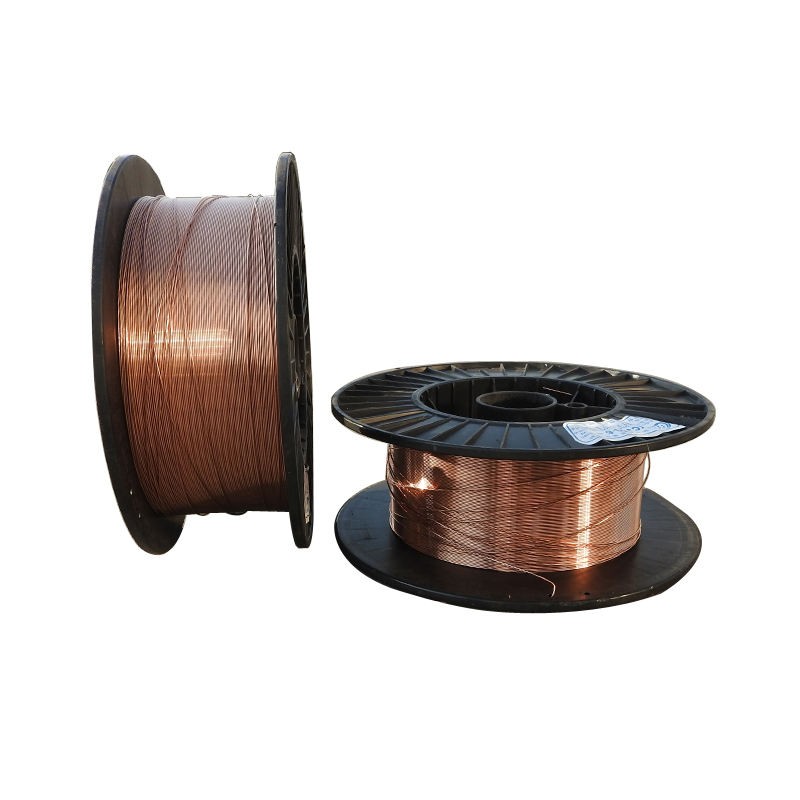

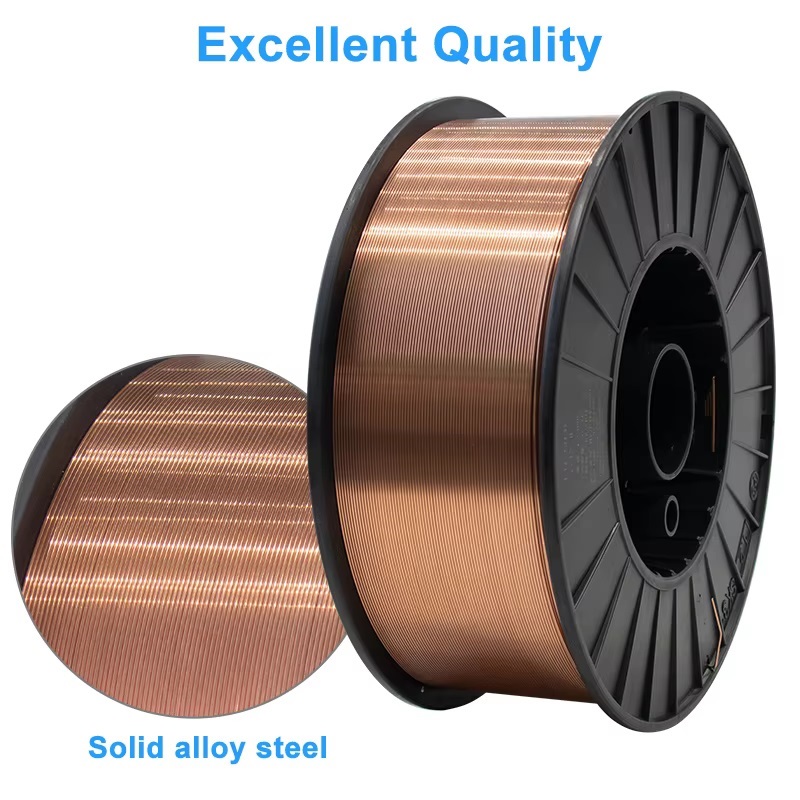

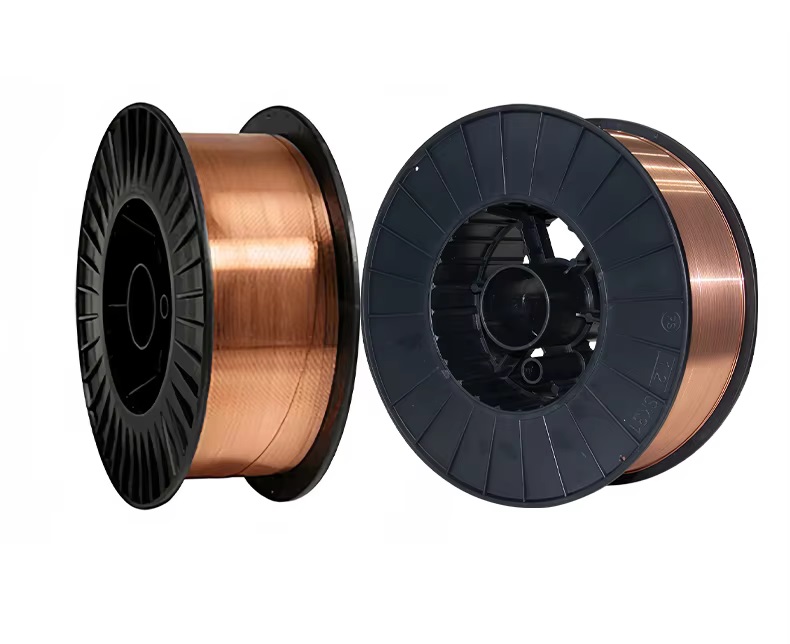

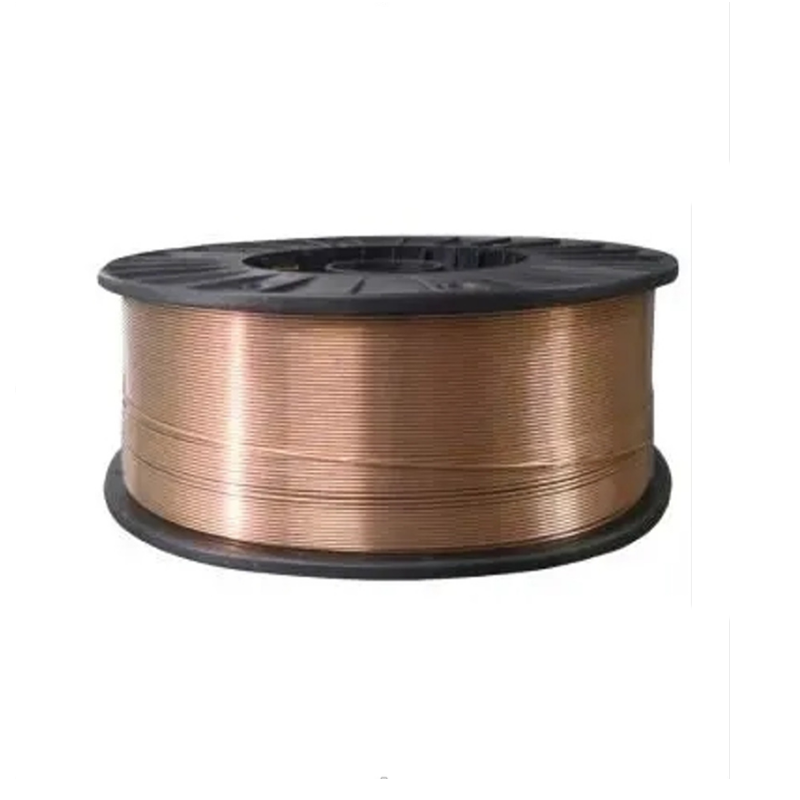

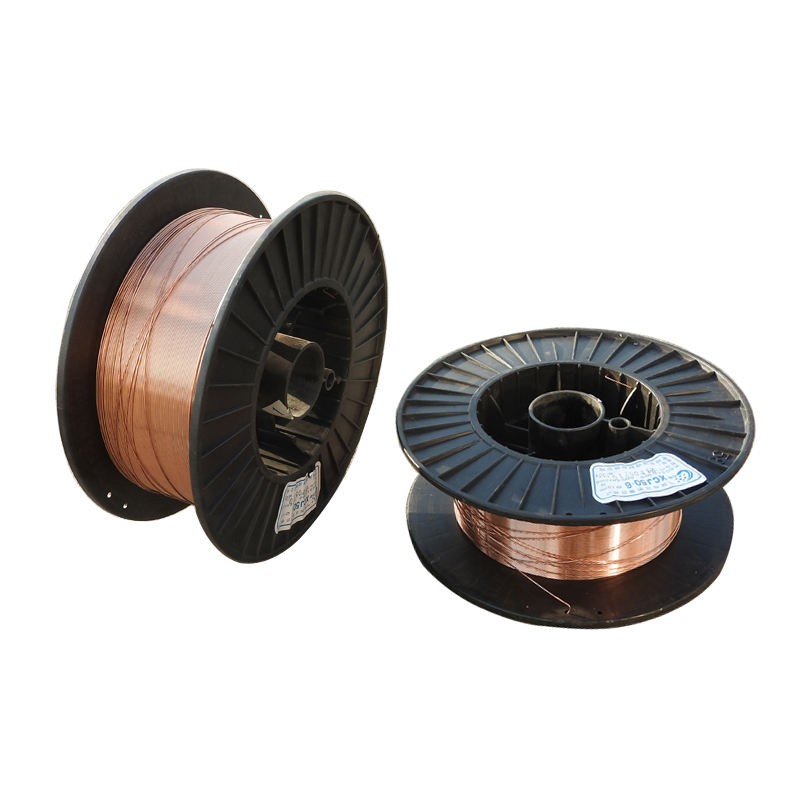

Co2 Solder Wire Copper Coated Welding Wire

Product Item： Er70s-6

 material : Carbon steel
diameter : 0.8-1.6mm
flux content : 80%Ar+20%CO2
model number : ER50-6
Product name : ER50-6 Welding Wires
Material : Alloy Steel
Application : construction machinery

Product Description:

ER70S-6 is suitable for robot welding of construction machinery, automobiles, steel

structures, pipelines, containers, and arc welding.

Chemical composition of the welding wire (mass fraction) %
Items	C	Mn	Si	S	P
Standard Value	0.06-0.15	1.4-1.85	0.8-1.75	≤0.035	≤0.025
Case of Value	0.073	1.49	0.88	0.011	0.01

Characteristics and Advantages :

Product Name	Copper coated welding wire
Shielding Gas	CO2
Material	Mild steel
Size	0.8mm /1.0mm /1.2mm
Color	Copper Bright
Standard	GB/T 8110, AWS A 5.18
Grade	ER70S-6, ER70S-G etc..
Application	Used for welding low carbon steel and low alloy steel structures
Advantage	stable feasibility, good welding seams, less spatters and excellent welding process properties.
Technical data	A.Chemical composition: C 0.06-0.15, Mn 1.40-1.85, Si 0.80-1.15, P <=0.025, S <=0.035, Cu <=0.35, Ni <=0.30, Cr <=0.20
Technical data	B. Tensile strength: ≥500MPa, yield point: ≥420MPa, elongation: ≥22, AK-V impact value: ≥27(-29).

Q1: Can I have a sample for testing?
A: Yes, we can support sample . The sample will be charged reasonably according to the negotiation between us.

Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.

Q3: What are the benefits of being a distributor?
A: Special discount Marketing protection.

Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting
or installation process, as well as aftermarket support.

Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.

...
