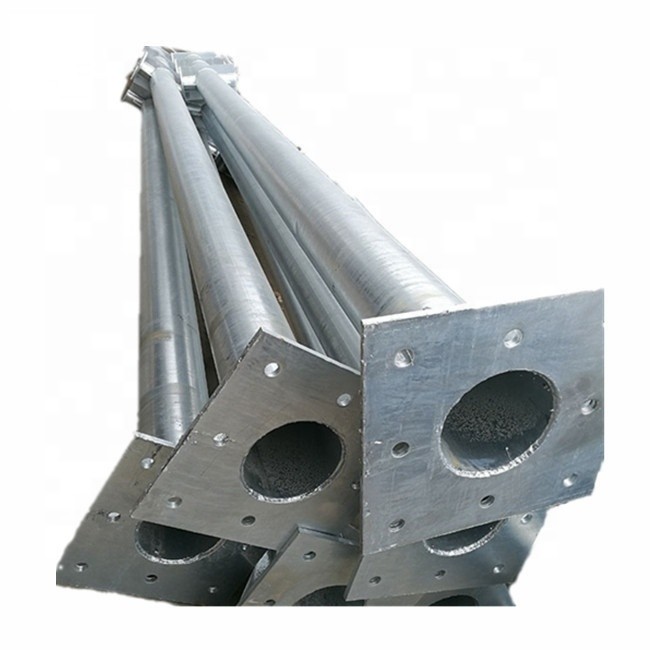

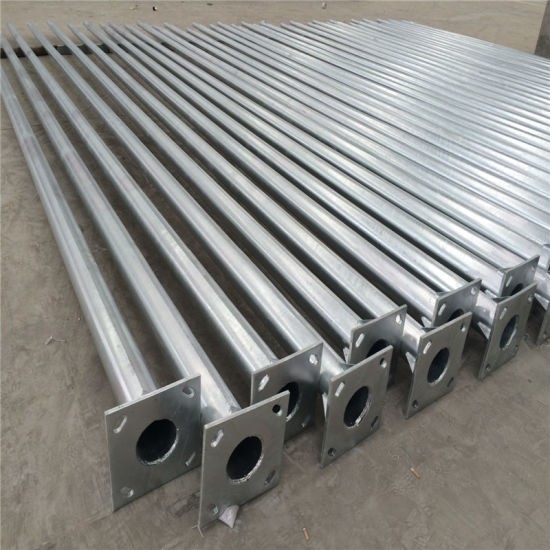

High Mast Led Street Light Pole

Product Item：85

Type : Polygonal/Round/Octagonal
Height : 3m 4m 5m 6m 7m 8m 9m 10m 11m 12m
Specification : 3m-55m
Material : Steel/Aluminum
Thickness : 2.5mm - 5.5mm

Description:

1. Material
Usually Q235B/A36,minimum yield strength>=235n/mm2,Q345B/A572,minimum yield strength>=345n/mm2,we use Q235 Grade A steel plate (whose Si≤0.04%, yield strength is >245Mpa, tensile strength is 375-500MPa), which confirm to the executive standard is GB699-88.

2. Application of High mast light:
Lighting for Airport,seaport,plaza,stadium,sqaure,highway,stree way,school,village,Residential subdivisions etc.

3. Pole Shape
Conoid ,Multi-pyramidal,Columniform,polygonal or conical.

4. Flange type
Variable arm length from 0.125m to 3.0m with single or double arm type,Variable spigot size from 35mm to 60mm.

Height	4m	5m	6m	7m	8m	9m	10m	11m	12m
Top diameter	60mm	60mm	60mm	70mm	70mm	75mm	75mm	75mm	90mm
Bottom diameter	140mm	140mm	140mm	155mm	155mm	175mm	190mm	190mm	195mm
Thickness	2-3.5mm			3-3.5mm		3-4mm		4-5mm
Base plate	12260260mm			14280280mm		16350350mm		18400400mm
Hot dip galvnaized	≥80um
Powder coating	≥85um
All of pole could be customized

Q1: Can I have a sample for testing?
A: Yes, we can support sample . The sample will be charged reasonably according to the negotiation between us.

Q2: Can I add my logo on the boxes/cartons?
A: Yes, we have a R&D capability and professional & efficient team, OEM and ODM are available from us.

Q3: What are the benefits of being a distributor?
A: Special discount Marketing protection.

Q4: How can you control the quality of products?
A: Yes, we have engineers ready to assist customers with technical support problems, any issues that may arise during the quoting
or installation process, as well as aftermarket support.

Q5: Can we mix items in full container?
A: Yes. We ship our products in bulk, usually 40 Feet High Cube Containers, but 20 feet containers are also acceptable.

...
